モーメント法によるダイポールアンテナの解析
(区分正弦ガラーキン法)

平野拓一

[Graphics:Images/index_gr_1.gif]

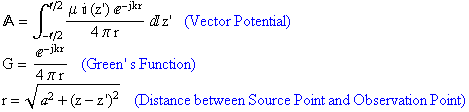

General

[Graphics:Images/index_gr_2.gif]

∇·､+jωμε φ=0    (Lorentz Condition)
φ=-[Graphics:Images/index_gr_3.gif]
ｨ=-∇φ-jω､=[Graphics:Images/index_gr_4.gif][Graphics:Images/index_gr_5.gif]

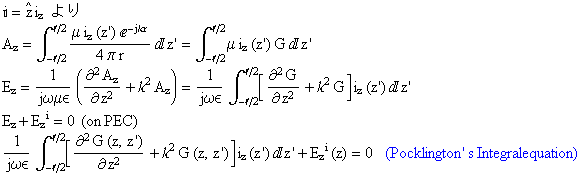

For Dipole Antenna

[Graphics:Images/index_gr_6.gif]

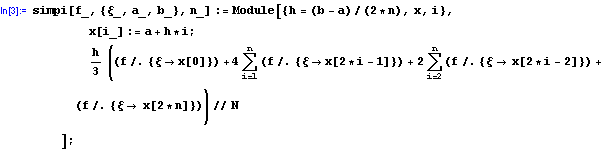

シンプソンの公式で数値積分する関数を定義

[Graphics:Images/index_gr_7.gif]

Parameters of Dipole Antenna

[Graphics:Images/index_gr_8.gif]
[Graphics:Images/index_gr_9.gif]
[Graphics:Images/index_gr_10.gif]

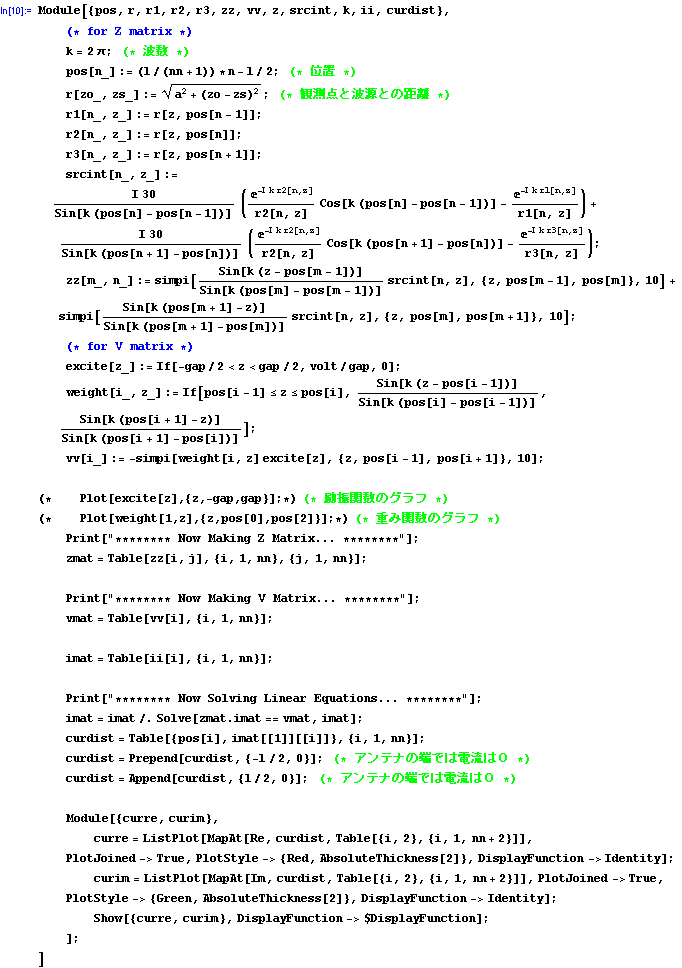

Analysis Start !

[Graphics:Images/index_gr_11.gif]
[Graphics:Images/index_gr_12.gif]
[Graphics:Images/index_gr_13.gif]
[Graphics:Images/index_gr_14.gif]
[Graphics:Images/index_gr_15.gif]
[Graphics:Images/index_gr_16.gif]

[Graphics:Images/index_gr_17.gif]

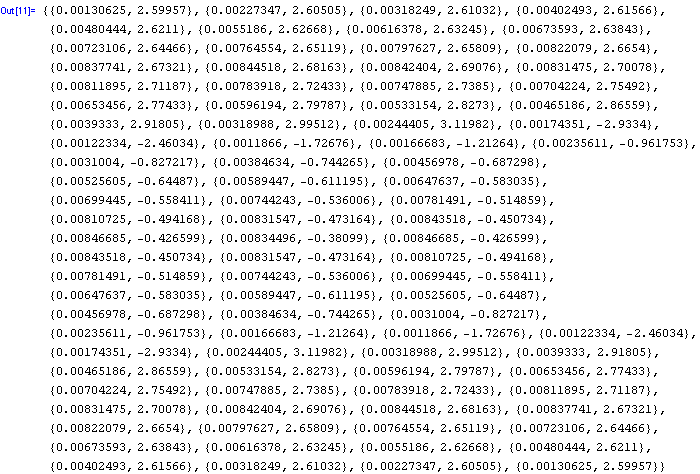

振幅と位相のリスト

[Graphics:Images/index_gr_18.gif]
[Graphics:Images/index_gr_19.gif]

Converted by Mathematica      October 17, 2001
